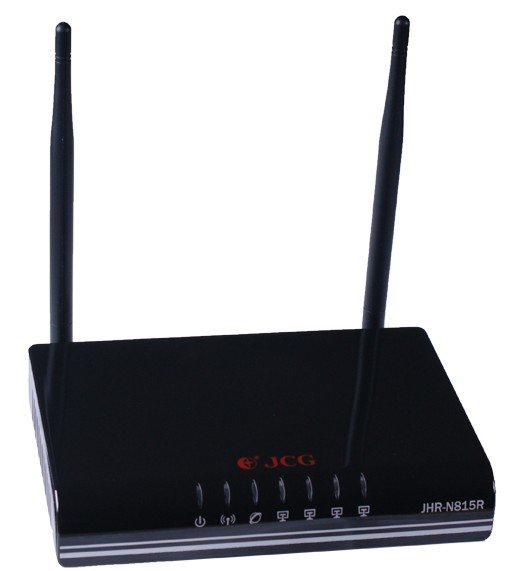

JCG JHR-N815R 300Mbps Diamond Series Intelligent soho 4-port top wireless router home product

Products Status:
Stock
Type:
Wireless
Application:
Soho
Function:
Firewall, QoS, VPN
LAN Ports:
4
WAN Ports:
1
JCG JHR-N815R 300Mbps Diamond Series Intelligent soho 4-port top wireless router home product

Detailed Description



1 JCG JHR-N815R 300Mbps Router
2 Wireless bridge
3 External omni-directional gain antenna
4 Welcome OEM ODM order

 JCG JHR-N815R 300Mbps Diamond Series Intelligent Wireless RouterProduct Description

JCGJHR-N815R intelligent wireless router is designed to meet the small business, office, home and wireless Internet access needs of student dormitories designed by a an intelligent high-end products.
Have a good wireless performance and a broader Fugaimianji, and support Daikuan control function, Ke Yi good Fenpeiwangluo Zi Yuan, it integrates with a variety of functions, is your wireless Internet surfing experience, enjoy the Wu Xian fun the best choice.



Features

Meet IEEE802.11n, IEEE802.11g, IEEE802.11b standards

Wireless transmission power up to 500mW, the transmission distance up to 500 meters (depends on the external environment)

Using MIMO technology to extend wireless signal more than 3 times the original standard

Wireless roaming (roaming) function

Bilingual support

Support real-time display function WAN online

Supports all major browsers

Setup Wizard and Quick Set

Security, "a machine a code" Wireless Encryption

Support for any AP to relay, to expand the signal coverage

Support the QOS settings on the upload bandwidth and download bandwidth control.

Built-in firewall, support IP address, MAC address, domain name address filtering, can be flexibly control the access permissions

Built-in DHCP server, supports dynamic address allocation, but also supports static IP address assignment

Supports virtual server, DMZ host

Support Upnp, static routing

To provide strong security protection, support 64/128 bits WEP encryption, support WPA/WPA2, 802.1X and other advanced encryption and security mechanism to protect the wireless network will not be violated or stolen

Remote Web management

Set of routers, 4 switches, wireless access point, firewall functions into one

Support PPPOE, Dynamic IP, Static IP and other broadband access methods

Support software upgrade

Provide simple configuration and monitoring procedures

External power adapter, the appearance of fine





Item

Description

Product

300Mbps Wireless Router

Antenna

Non-detachable 3dBi Antenna x 2  (2T2R)

Wireless Features

Support IEEE 802.11g, 802.11b and 802.11n draft 2.0 Wireless Access Point

Superior wireless coverage and high performance, up to 300Mbps for wireless data rates

Support WDS, AP, AP Client mode

Maximum coverage distance

100 m indoors; 500m outdoors

Modulation Types Supported

OFDM: BPSK, QPSK, 16QAM, 64QAM, Proprietary MIMO modulation (11g)

DSSS: DBPSK, DQPSK, CCK(11b)

Data Rates Supported

IEEE 802.11b: 1, 2, 5.5 and 11 Mbps

IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

IEEE 802.11n: up to 300Mbps

Management Features

Firmware upgrade via HTTP

WAN and LAN side connection statistics

Configuration of NAT

Selection of bridge or router mode

PPP user ID and password

Physical Interfaces

4 x RJ-45 10/100Mbps LAN Ports

1 x RJ-45 WAN Port

1 x power jack

2 x non-detachable antenna (1T2R)

Router Features

DHCP server and client

NAT (Network Address Translation)

ICMP (Internet Control Message Protocol)

DDNS (Dynamic Domain Name Service)

Security Features

Password protected configuration access

Support 64/128-Bit WEP encryption, WPA-PSK, WPA2-PSK, WPS and 802.1x

Ethernet Features

Compliant with IEEE 802.3 and 802.3u 10/100 Mbps

All Ethernet ports support auto-crossover (MDI/MDI-X)

Power

9VDC, 1A Single Range Switching Power Adapter

temperature

0°C to 40°C(operating)

–20°C to +70°C(storage)

humidity

10% to 90% non-condensing (operating)

5% to 95% non-condensing (storage)




We promise to offer you the right Router with best price and best service!We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise good price, best quality, fast delivery.We are sincerely looking for your cooperation.
